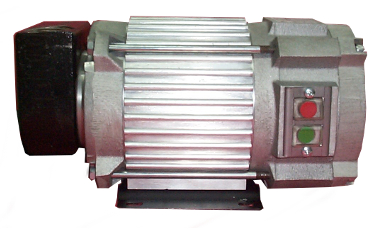

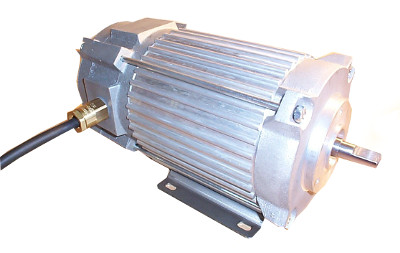

FLAMEPROOF MOTORS

The flameproof motors manufactured by Vernis Motors are suitable for driving fuel pumps, pumps for printing machines, paint mixers, etc.They are motors that are intended to provide a safe service in environments where habitually or accidentally exist ignitable gases or vapours.
To prevent the risk of explosion the motors are built according to the following standards: UNE- EN 60079-0 and UNE-EN 60079-1.The “Protection System” is defined in the regulations as: Protection by flameproof enclosure.
The “label” of these motors that harmonizes the protection system, the group of gases or environment vapours that it must protect and the maximum temperature of the motor, is: EEx d IIB T4 (For maximum temperature of 135 ° C)
These motors are adequately approved and certified by an official laboratory.

TECHNICAL CHARACTERISTICS

MODEL AC071068 ACO1067
Voltage: 230 V 230 V
Frequency: 50 Hz 50 Hz
Power: 0,19 W 0,19 W
Speed: 2840 rpm 1430 rpm
Current: 3,5 Amp 3,6 Amp
Protection Degree: IP-55 IP-55
Thermal Protection  Sí
